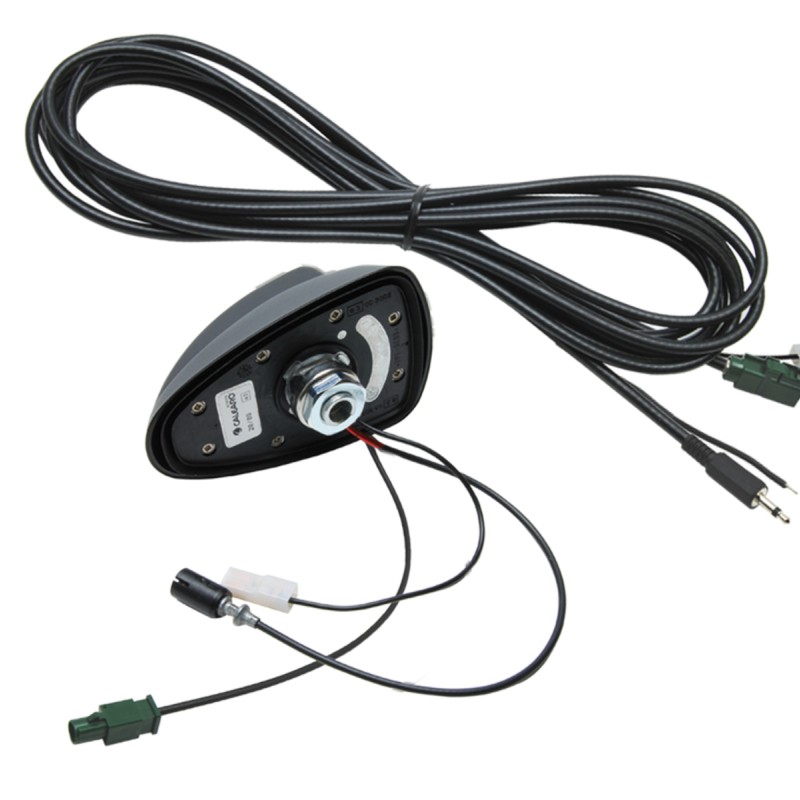

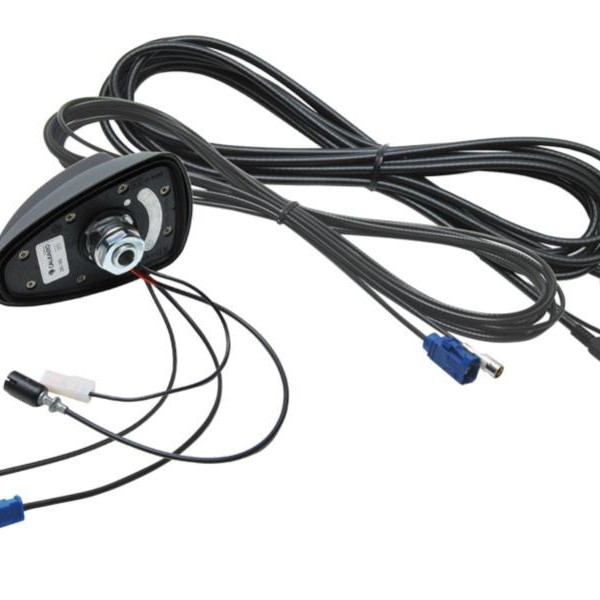

Shark II Antenne AM / FM / DVBT / GPS > HC 97 (f)
from
$179.00
Ex Tax: $179.00
- Stock: In Stock
- Brand: Antenne
- Model: 85041
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Shark II Antenne AM / FM / DVBT / GPS > HC 97 (f)
Bauform Shark II
AM/FM 12V
TV/DVB-T 12V
GNSS 2V - 5V Phantomspeisung
Einbauort: Dach hinten
Bohrung: ø 19 mm / 15 mm x 15 mm r 2 mm
Antennenfuß: L = 11,7 cm / B = 7,6 cm / H = 6,2 cm
Bohrung: ø 19 mm / 15 mm x 15 mm r 2 mm
Antennenfuß: L = 11,7 cm / B = 7,6 cm / H = 6,2 cm
AM/FM Anschluss: HC97(f) (Raku2)
TV/DVB-T Anschluss: Fakra(m) / Kabel 5 m / Z 75 O 3,5 mm Klinke(m) momo
TV/DVB-T Anschluss: Fakra(m) / Kabel 5 m / Z 75 O 3,5 mm Klinke(m) momo
GNSS Anschluss: Fakra(m) / Kabel: Länge 5 m / Z 50 O / C 100p/Fm SMB(f)
Empfangsbereich
AM 0,15 - 1,71 MHz
FM 87,5 - 108 MHz
TV/DVB-T:
Band III 174 - 230 MHz
Band IV/V 470 - 790 MHz
GNSS 1575,42 - 1,023MHz
Stromaufnahme:
AM/FM 50 mA max
DVB-T 40 mA max
AM/FM 50 mA max
DVB-T 40 mA max
GNNS 30mA max
Optionale Artikelnummer: (5,6 Meter AM/FM Kabel)
15-7581119 (DIN)
15-7581062 (ISO)
15-7581139 (FAKRA)
15-7581119 (DIN)
15-7581062 (ISO)
15-7581139 (FAKRA)
| Default | |
| Antenne Ausführung | AM-FM |
| Antennen Anschluss A | Fakra- stecker (M) |
| Hersteller | Antenne |
| Produkt Gruppe | Antennen Kombiantennen |
