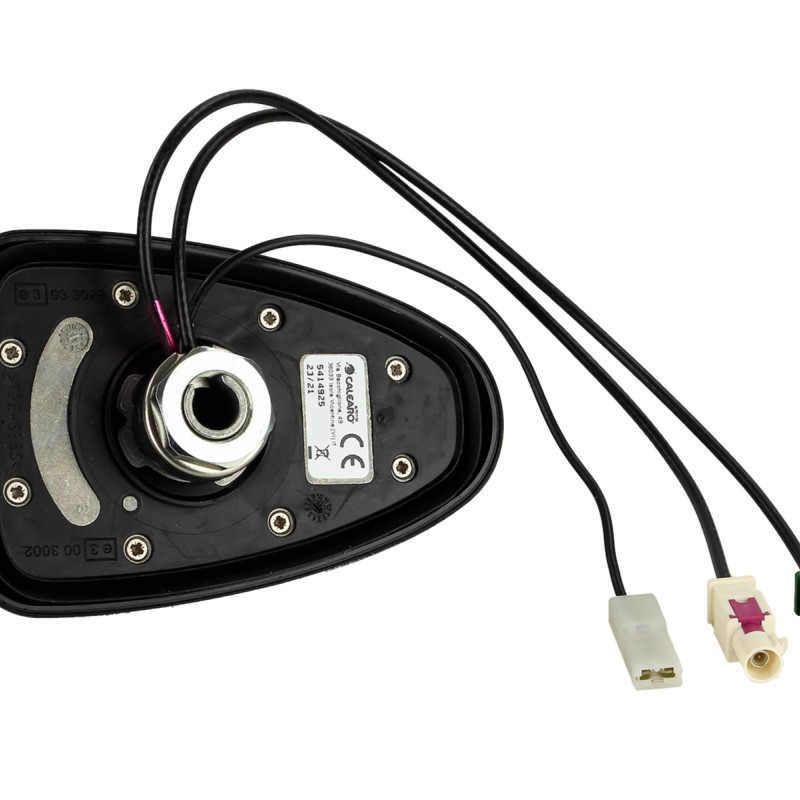

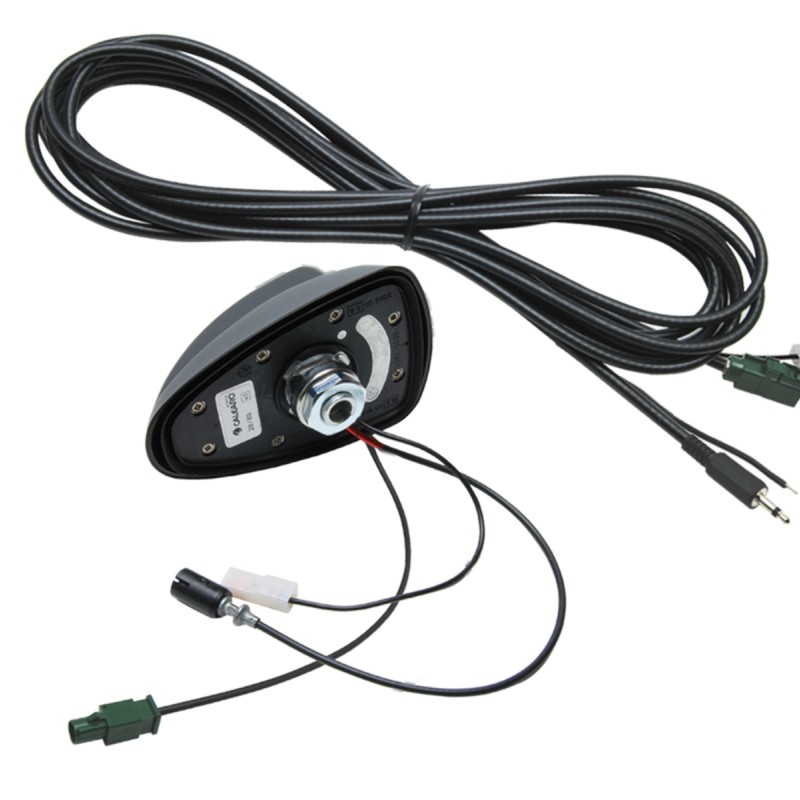

Shark II Antenne BI-TV > HC 97 (f)

Shark II Antenne BI-TV > HC 97 (f)
Shark II Antenne BI-TV > HC 97 (f)
Shark II Antenne BI-TV > HC 97 (f)
Shark II Antenne BI-TV > HC 97 (f)
Shark II Antenne BI-TV > HC 97 (f)
from
$149.00
Ex Tax: $149.00
  • Stock: In Stock
  • Brand: Antenne
  • Model: 85042
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.
Create unlimited custom product blocks and display them in accordions or tabs or open blocks. Each block can be assigned to all products at once or specific products according to advanced criteria.

Shark II Antenne BI-TV > HC 97 (f)

Bauform Shark II

AM/FM 12V
TV/DVB-T 12V
Einbauort: Dach hinten
Bohrung: Ø19 mm / / 15 mm x 15 mm r 2 mm
Antennenfuß: L = 11,7 cm / B = 7,6 cm / H = 6,2 cm
AM/FM Anschluss: HC97(f) (Raku2)
TV/DVB-T Anschluss: Fakra(m) / Kabel 5 m / Z 75 O 3,5 mm Klinke(m) mono

Empfangsbereich
AM 0,15 - 1,71 MHz
FM 87,5 - 108 MHz
TV/DVB-T:
Band III 174 - 230 MHz
Band IV/V 470 - 790 MHz

Gewinn:
TV/DVB-T 10dB
Stromaufnahme:
AM/FM 60 mA max
DVB-T 40 mA max

Optionale Artikelnummer: (5,6 Meter AM/FM Kabel)
15-7581119 (DIN)
15-7581062 (ISO)
15-7581139 (FAKRA)
Default
Antenne Ausführung AM-FM
Antennen Anschluss A Fakra- stecker (M)
Hersteller Antenne
Länge bis cm 500
Produkt Gruppe Antennen Kombiantennen
