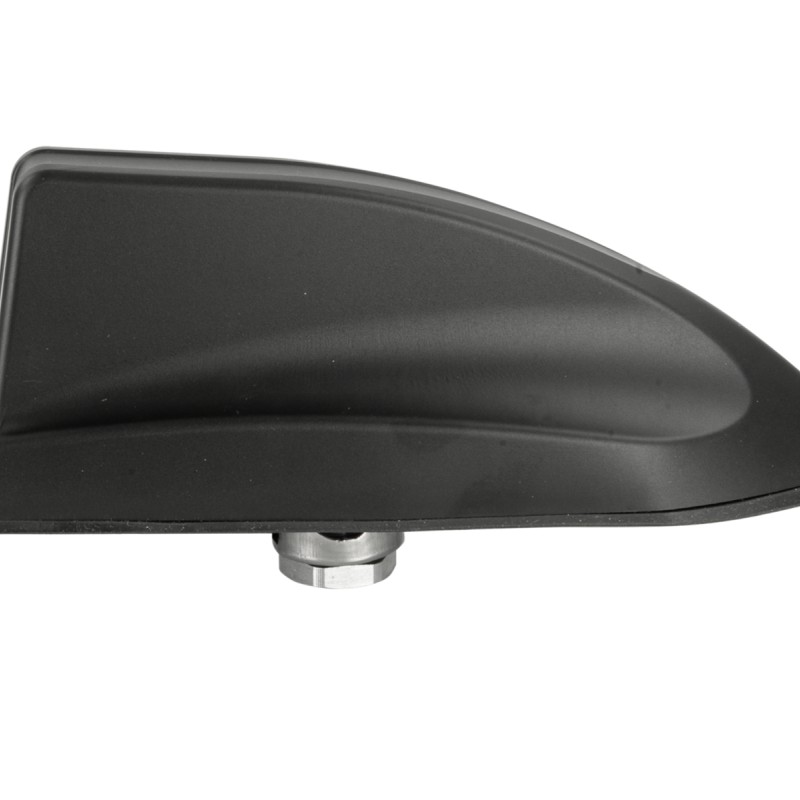

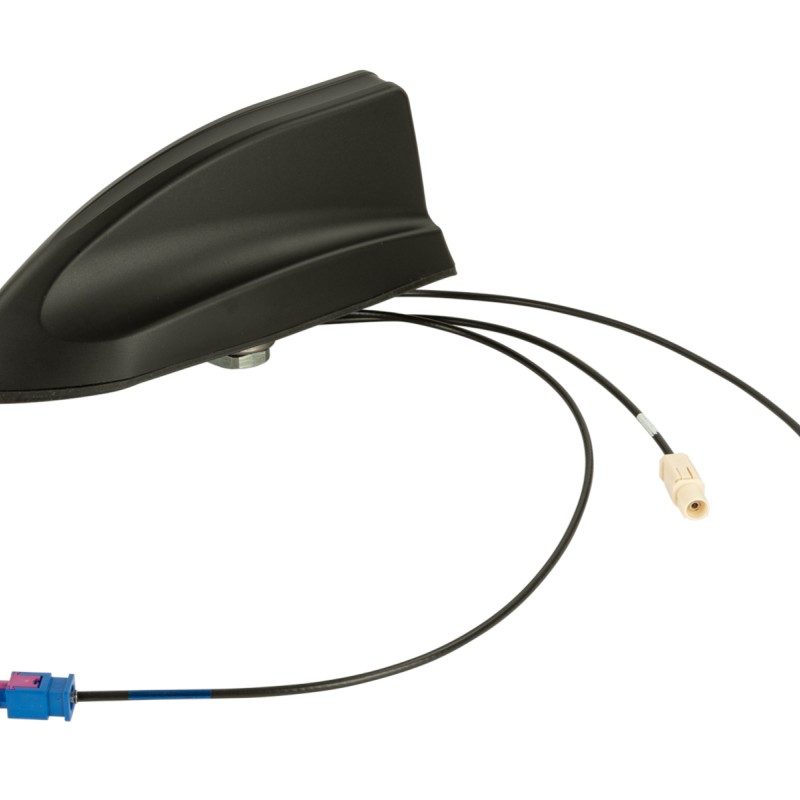

Dachantenne AM/FM DAB+ GNSS(GPS/GLONASS) Shark III

Dachantenne AM/FM DAB+ GNSS(GPS/GLONASS/Galileo/Navstar)

Calearo

Bauart: Shark III

Empfangsarten:
AM/FM
DAB+
GNNS

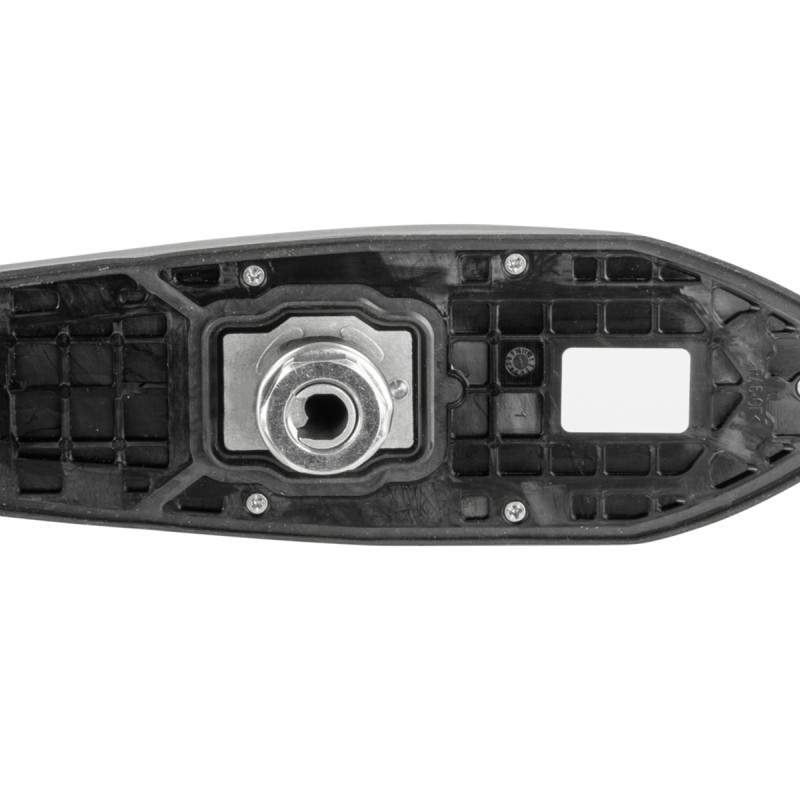

Montage:
Einbauort: Dach hinten
Bohrung rund: 17 mm - 23 mm max.
Anzugsmoment: 7 nm +/- 10%

Maße:
Antennenfuß: L = 117 mm / B = 76 mm / H = 62 mm

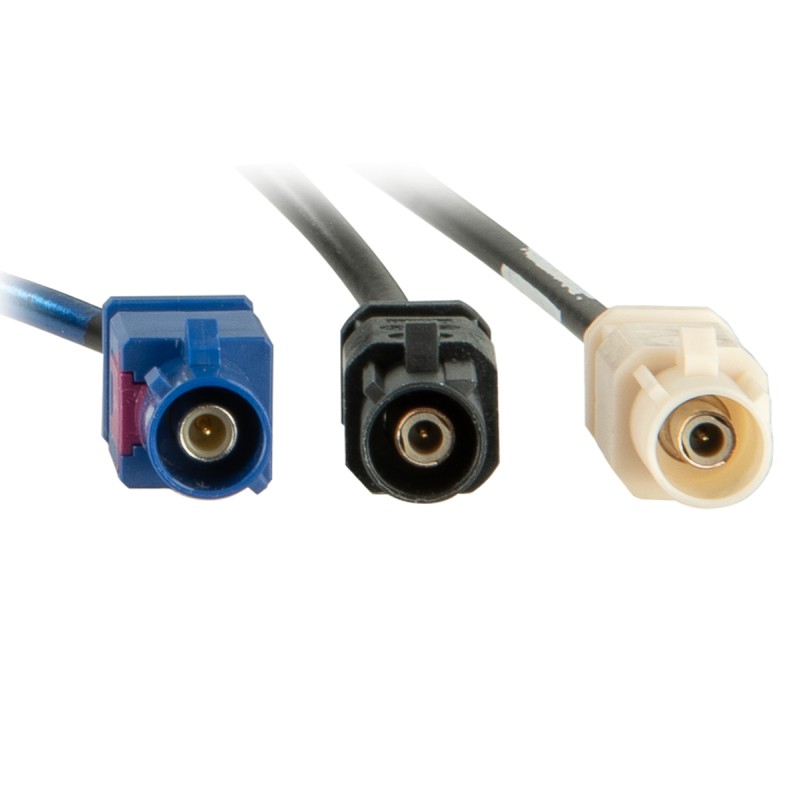

Anschluss:
AM/FM: Fakra B(m) white RG174 / L=210 mm
DAB+: Fakra A(m) black RG174 / L=310 mm
GNSS: Fakra C(m) blue RG174 / L=410 mm

Frequenzbereich:
AM: 525 kHz - 1710 kHz
FM: 87,5 MHz - 108 MHz
DAB+: 174 MHz - 240 MHz
GNSS: 1559 MHz - 1065 MHz

Zugewinn:
AM/FM: 0 dbi
DAB+: 6dBi
GNSS: 28dBi

Spannungsversorgung:
AM/FM: +12V Phantomspeisung
DAB+: +12V Phantomspeisung
GNNS: +3V - +5V Phantomspeisung

Stromaufnahme:
AM/FM: 63 mA max
DAB+: 40 mA max
GNSS: 31 mA max

Impedanz:
AM/FM: 50 Ohm
DAB+: 50 Ohm
GNSS: 50 Ohm
LTE: 50 Ohm

Stehwellenverhältnis:
FM: <2:1
DAB+: <3:1
GNSS: 1,7:1

Rauschzahl:
FM: 2,8 db
DAB+: 2,4 db
GNSS: 1,45 db

Polarisation:
FM: Linear-Vertikal
DAB+: Linear-Vertikal
GNSS: Circular (RHCP)

Default
Hersteller	Antennen Kombi
Produkt Gruppe	Antennen Kombiantennen
